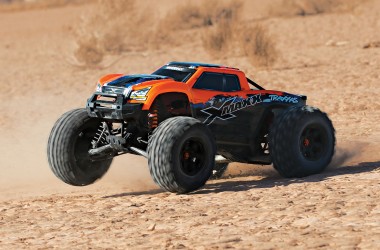

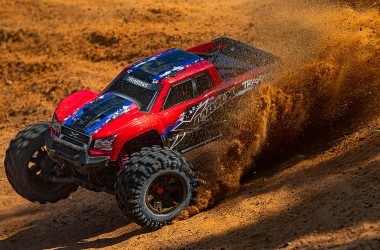

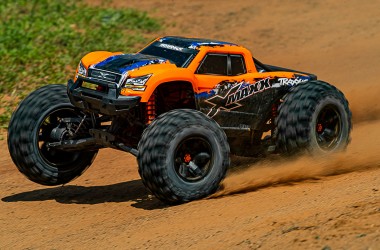

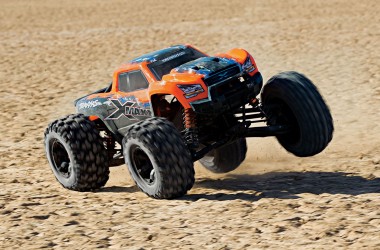

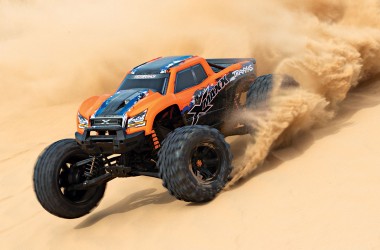

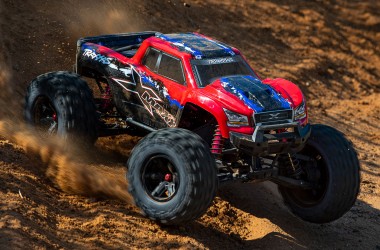

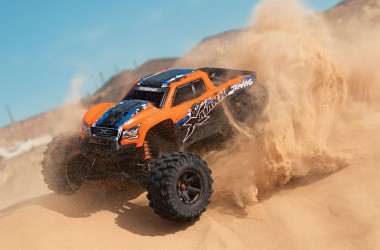

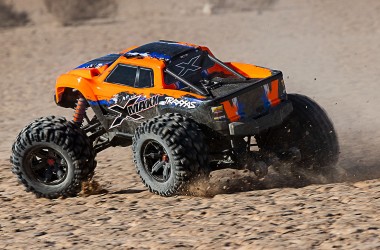

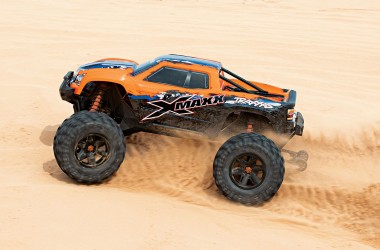

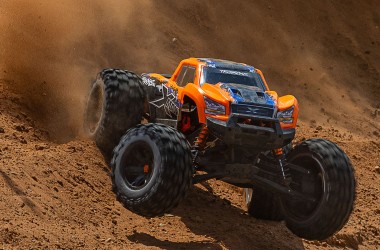

New 8S version!Unrelenting 4X4 power, mammoth size, and award-winning innovation make X-Maxx the ultimate monster truck. With 30+ volts of extreme 8S power, X-Maxx defies physics, unleashing jaw-dropping acceleration and 50+mph speeds. Engineered to conquer the most extreme terrain and take brutal real-world punishment in stride, X-Maxx is the definition of Trax Tough.

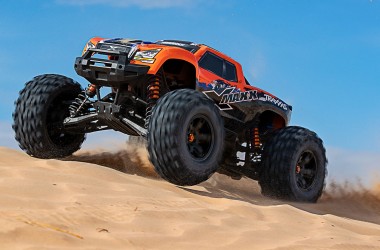

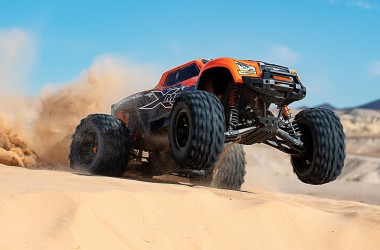

Size Wins:At the end of the day, size always wins. X-Maxx plows over obstacles and muscles through extreme terrain that leaves lesser trucks stranded. Mammoth 8-inch tall tires, long-arm suspension, and huge ground clearance dwarf the surroundings for virtually unstoppable monster truck fun.
Extreme Power:At Trax, too much power is never enough! The durability of the new VXL-8s is matched only by the sheer ferocity of its 8s 30+ volt dual LiPo muscle. The speed-tuned 1200XL Big Block™ motor propels X-Maxx with brutal authority and exacting quickness that warps your senses. No matter what you have driven in the past, nothing will prepare you for X-Maxx.
Maxx-Duty Drivetrain:X-Maxx puts the power to the ground through tough all-steel drivetrain gears, the revolutionary Cush Drive system, and our strongest driveshafts ever. The all-new Torque-Biasing Center Drive improves driveline durability and drives larger module ring and pinion gears on the toughest differentials we have ever produced.

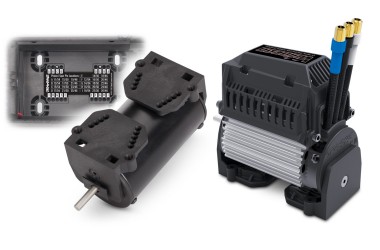

Velineon VXL-8s Brushless Power System
VXL-8s Waterproof Electronic Speed Control:
- 8s LiPo compatible
- Built-in cooling fan
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
Velineon 1200XL Brushless Motor:
- “Big Block” brushless motor
- 4-pole 1275 kV
- 5mm output shaft
- Aluminum slip-on heat sink
- Dual motor cooling fans

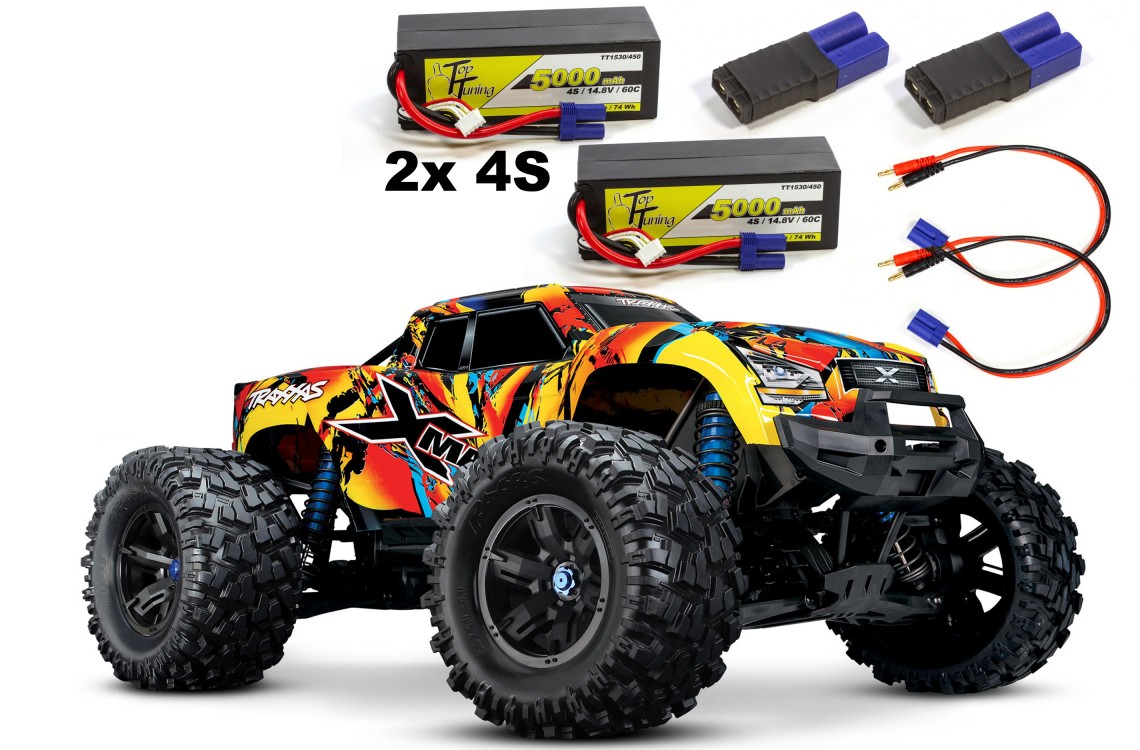

50+ MPH with Two 4s LiPo Batteries and Included Optional Pinion Gear.
TraxStability Management:
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter

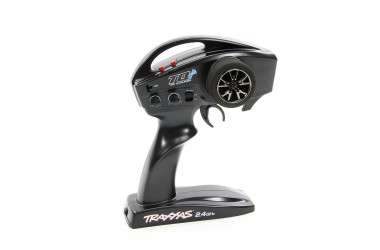

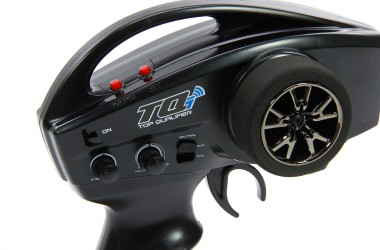

TQi™ 2.4GHz High Output Radio System:
- TQi™ 2.4GHz transmitter
- Trax Link enabled
- TQi™ 2.4GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Trax Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- High 13ms frame rate and near-zero latency for responsive control
- Telemetry-ready 5-channel micro receiver with dual channel-1 inputs
- BEC Voltage and Motor Temperature Sensor installed
New Body Mount System:
- Quick one-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips

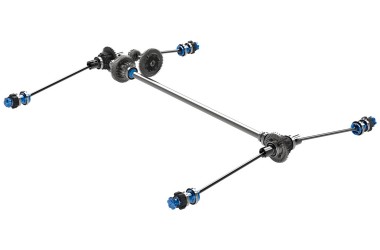

Drivetrain:
- Full-time shaft-driven 4-wheel drive
- All-metal gears and CVDs
- Torque-Biasing Center Drive™ absorbs shocks and distributes power
- 24mm splined wheel hexes
- Wheel hexes retained with a clip
- 17mm hex on outside of wheel

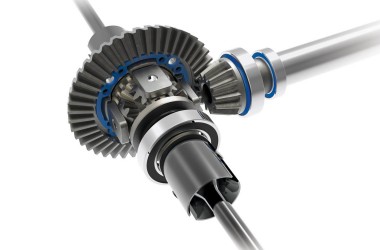

- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Splined outdrives attached with external thru-bolt method

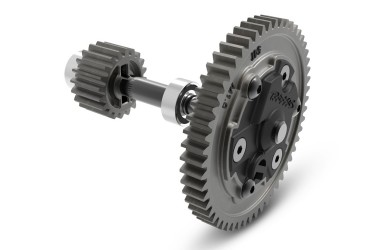

- Heavy-duty Cush Drive™ with steel spur gear
- Fully machined aluminum stub axles

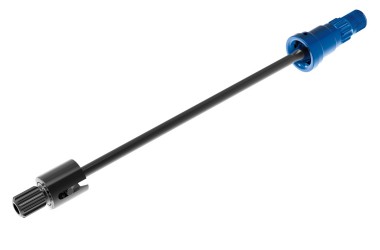

- Splined aluminum center driveshaft
New Motor Mounting System:
- Precision, preset gear mesh adjustments
- No manual gear mesh adjustments are required
- Motor retention separate from gear mesh

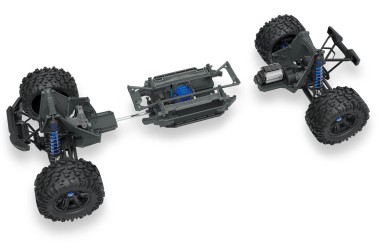

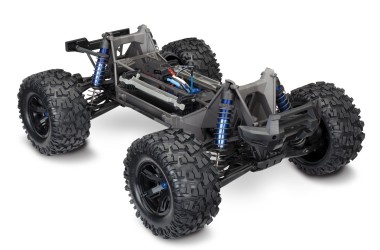

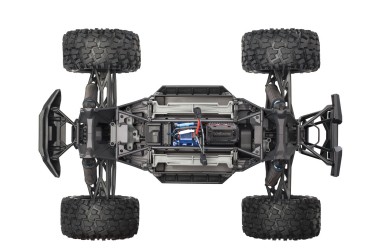

New Modular Composite Chassis.
Rigid Chassis Structure:
- Modular chassis design interlocks with front and rear bulkheads
- Motor mounts to rear bulkhead to eliminate gear crunching flex
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
New Battery Retention System:
- No body clips or hook and loop straps
- Battery hold-downs pivot for easy access
- Adjustable for battery size
- More secure than conventional retention systems
- Integrated into chassis top brace for improved battery tray and chassis stiffness
New Steering Bell Cranks and Servo Saver:
- New high-output steering servo
- Wired directly into the RX box, no external wires seen on chassis
- New mounting system to fully support case
- Double-shear, bearing supported servo horn
Suspension:
- Engineered to optimize suspension travel and steering angles
- All critical suspension points have double shear strength
- High strength steel suspension pins used throughout
- Suspension pins retainers won’t come loose or “back-out”
- 4mm machined pivot balls
- C-hub and steering block geometry maximizes steering angle
- Adjustable roll center
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- Full contact sealed bearings used in exposed locations

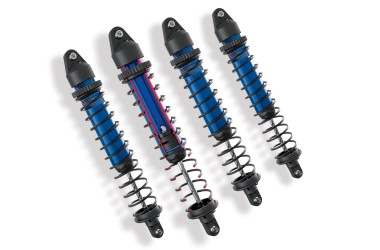

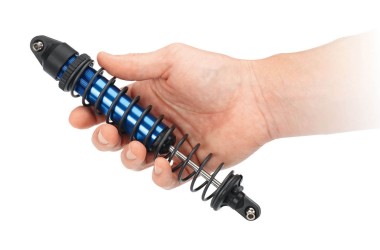

New GTX Shocks:
- Machined aluminum threaded body
- Extra-large bore and capacity
- 5.2mm damper shaft
- Lower seal cartridge includes integrated wiper seal combination
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Fixed shock locations
- Lower spring perches bolted on
Bumpers:
- Front energy absorbing rubber impact bumper
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance

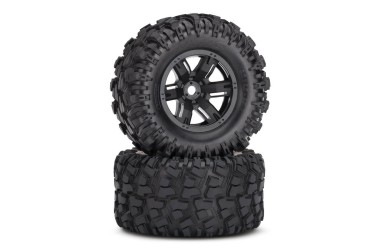

Wheels/Tires:
- 8x4x4 inch all-terrain tires
- Large, dual diameter wheels
- Specifically formulated 8s rubber compound
- 2-piece foam insert
- High-strength glue and bead design
